High industrial real estate costs, strict zoning regulations, and constrained agricultural facility dimensions often force operators to compromise on processing capacity. Designing a layout that accommodates intake, milling, grading, and packaging without creating operational bottlenecks, safety hazards, or maintenance dead-zones within a limited footprint is the core business problem. Evaluating how strategic equipment selection and intelligent spatial planning can maximize throughput in a constrained footprint ensures a highly viable return on investment. You must balance the physical dimensions of your machinery with the required throughput. By utilizing vertical space and choosing integrated machinery, you can build a highly efficient facility even in tight quarters. This guide explores actionable layout strategies, equipment selection criteria, and risk mitigation techniques to help you optimize every square foot of your processing area.
Vertical Space Utilization: Leveraging bucket elevators and gravity-fed systems minimizes the required horizontal footprint while maintaining continuous material flow.
Equipment Integration: Selecting an integrated, compact rice mill line reduces the need for extensive conveyor networks between standalone destoners, hullers, and polishers.
Maintenance Clearances: Sacrificing operational clearance for extra machinery leads to costly downtime; minimum distances for servicing wear parts (like screens and rollers) must be maintained.
Workflow Mapping: A U-shaped or L-shaped layout often provides superior space efficiency for raw material intake and finished product dispatch compared to strict linear configurations.
Site & Infrastructure Readiness: Site selection must balance physical space constraints with zoning codes, raw material vehicle access, and electrical power supply configurations.
Establishing the baseline square footage required for standard capacities dictates the entire project scope. A typical 500kg/h to 2TPH setup requires precise spatial calculation. Operators face a direct trade-off between physical footprint and maximum daily yield. Real-world dimensional benchmarks show that micro-scale operations can function in spaces as small as 7 by 13 feet with a 10-foot ceiling height, translating to approximately 90 square feet. Achieving your target tons-per-day without violating safety or operational thresholds defines success. A well-planned Small Rice Milling Plant maximizes output while respecting these strict boundaries.
When planning the floor area, you must account for the static footprint of the machinery and the dynamic footprint required for operation. The static footprint is simply the length and width of the machine base. The dynamic footprint includes the space needed for operators to stand, the swing radius of access doors, and the staging area for raw materials feeding into the intake hopper. Failing to account for the dynamic footprint results in a cramped facility where operators cannot move efficiently, leading to slower processing times and increased risk of injury.
Capacity Target | Minimum Static Footprint (sq. ft.) | Recommended Dynamic Footprint (sq. ft.) | Minimum Ceiling Height (ft.) |
|---|---|---|---|
500 kg/h | 40 | 90 | 10 |
1 TPH | 80 | 150 | 12 |
2 TPH | 120 | 250 | 15 |
Improper space allocation introduces severe operational risks. Cross-contamination between raw paddy intake and milled rice storage is a frequent issue in cramped facilities. Dust and debris from the intake pit can easily settle on finished, polished rice if the two zones are not adequately separated by physical barriers or distance. Poor traffic flow disrupts both operators and material handling equipment. Forklifts, manual pallet jacks, and hand trucks need dedicated lanes to function safely. If a pallet jack cannot turn around within the storage zone, loading times double.
Flow mismatches also occur when processing speed differences between individual components cause mid-line pileups. If the destoner processes paddy faster than the huller can accept it, the surge hopper overflows. In a tight space, an overflowing hopper creates an immediate tripping hazard and requires manual cleanup, halting production. You must align the capacity of each machine to maintain a steady flow, or install appropriately sized surge bins between mismatched components to absorb the difference in processing rates.
Local zoning permits and land-use laws often restrict physical expansion. These regulations force operators to maximize existing indoor volumes. You must outline mandatory spacing for fire safety, emergency exits, and high-voltage electrical panel access. Regulatory bodies enforce strict rules on these clearances. For example, electrical panels typically require a minimum of 36 inches of clear space in front of them. Blocking this space with a bucket elevator or a stack of paddy bags violates fire codes and prevents rapid shutdown during an emergency.
Furthermore, you must maintain adequate space for moving parts, belt replacements, and screen cleaning. Ignoring these requirements leads to compliance failures and unsafe working conditions. When selecting a site, evaluate the load-bearing capacity of the floor. Milling equipment generates significant vibration. A standard 4-inch concrete slab may crack under the continuous vibration of a 2TPH line. Upgrading to a 6-inch reinforced slab with dedicated isolation pads for heavy machinery prevents structural damage over time.
Evaluating integrated machines against modular setups dictates the overall space optimization strategy. Integrated systems house cleaning, hulling, and polishing on a single, unified steel frame. This design significantly reduces the required footprint. A combined, complete rice milling line often fits into spaces as small as 100 to 150 square feet for micro-commercial operations. Structural weight distribution and foundation requirements differ greatly between the two. Integrated machines usually require less complex foundation work compared to sprawling modular setups.
Modular systems, while offering more flexibility for future upgrades, demand extensive horizontal space for the conveyor networks connecting each standalone unit. Every transition point between a modular destoner and a modular huller requires a bucket elevator or an inclined belt, consuming valuable square footage. Integrated systems eliminate these intermediate conveyors by stacking the processes vertically or closely coupling them on the shared frame. This reduces the total number of electric motors required, simplifying the electrical panel and lowering the overall power draw.
Single-pass systems offer extreme space savings. They are ideal for severe space constraints but often result in higher broken rice percentages because the grain is subjected to intense pressure in a single milling chamber. You must weigh this quality trade-off carefully against your market requirements. If your buyers demand a low percentage of broken grains, a single-pass system will not suffice, regardless of how much space it saves.
Compact multi-pass configurations balance high yield quality with a reduced physical footprint. Modern multi-pass systems stack components vertically to conserve floor space. This vertical stacking allows you to achieve premium milling quality without expanding horizontally. A multi-pass system gently removes the bran layers over two or three successive polishing stages, reducing the thermal stress and physical pressure on the rice kernel. This results in a higher head rice yield, which commands a premium price in the market.
Assess space-saving alternatives for paddy cleaners, destoners, rubber roller huskers, and paddy separators. Every component must justify its spatial footprint. Integrate compact grading and packaging equipment directly at the end of the milling sequence. This eliminates unnecessary transit zones. Modern color sorters designed specifically for small-scale operations offer advanced optical sorting without dominating the floor plan. Choosing a highly efficient compact rice mill line ensures all components fit seamlessly.
Measure the exact dimensions of the proposed machinery, including all protruding motors and drive guards.
Calculate the required clearance for opening access panels and removing internal components like sieve frames.
Determine the optimal placement for the main control panel to minimize the length of cable runs while maintaining operator visibility of the entire line.
Select bucket elevators with a narrow profile and direct-drive motors to eliminate bulky belt-and-pulley assemblies at the elevator head.

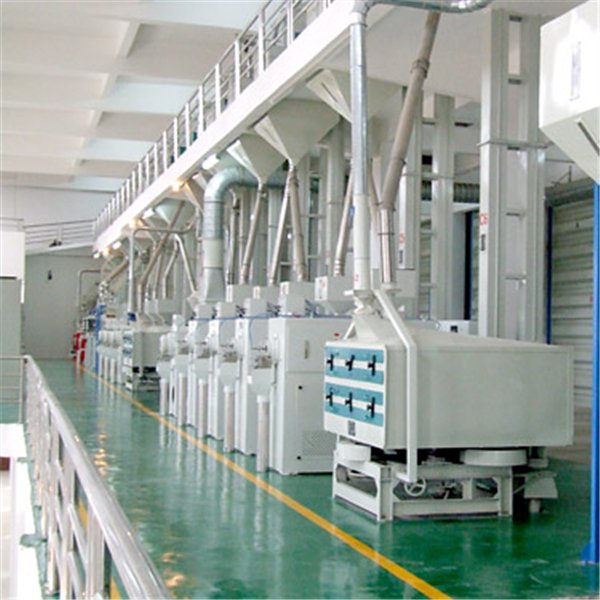

Z-type and C-type bucket elevators move paddy and brown rice vertically with minimal horizontal run. These elevators are essential for tight layouts. Gravity-flow configurations stack hoppers, hullers, and separators to eliminate horizontal belt conveyors. This approach leverages gravity to move materials efficiently. You must analyze vertical clearance thresholds carefully. Design your system within common ceiling heights, such as 10-foot, 12-foot, and 15-foot structures, to avoid costly roof modifications.
When utilizing vertical space, structural support becomes a primary concern. Stacking a heavy paddy separator above a rubber roller husker requires a robust steel mezzanine or a reinforced machine frame. The center of gravity shifts higher, increasing the risk of sway during operation. Cross-bracing the equipment frame to the building's structural columns mitigates this vibration. Additionally, ensure that the discharge spouts from the upper machines have a steep enough angle (typically 45 to 60 degrees) to prevent material bridging and blockages.
The U-shape layout places intake and dispatch on the same side. This configuration is ideal for single-door facilities. Linear flow requires access at both ends, which is often impossible in small buildings. The L-shape layout works perfectly for corner installations or rectangular rooms with narrow widths. Map the logical flow from the raw paddy intake pit to the final packaging station to minimize material travel distance. Allocate space outside the main processing floor for vehicle unloading zones and turning radiuses.
In a U-shaped layout, the raw paddy enters through the main door, travels down one side of the room through the cleaning and hulling stages, crosses the back wall during the polishing phase, and returns down the opposite side for grading and packaging. This keeps the dirty intake zone physically separated from the clean packaging zone, even though they share the same access door. Forklift operators can unload raw paddy and load finished pallets without crossing the processing line, improving safety and efficiency.
Raw paddy storage requires significant space. Evaluate silos versus space-saving bagged stacking based on your ceiling height. Implement just-in-time processing strategies to reduce the need for massive on-site warehousing of finished goods. Designate isolated, compact zones for by-product storage. Keep husks and bran contained to prevent air contamination in the main milling area. A well-organized small scale rice processing line relies on strict inventory management.
Bagged stacking requires sturdy pallets and a clear understanding of load limits. Stacking bags too high in a confined space creates a collapse hazard. If using silos, consider square or rectangular bins instead of cylindrical ones. Square bins utilize corner space more effectively, offering up to 25% more storage capacity in the same footprint. For by-products, install a direct pneumatic conveying line from the huller to an external husk bin. This removes the bulky husks from the processing room immediately, freeing up floor space and reducing airborne dust.
Compare the cost of expanding the physical building versus investing in higher-tier, ultra-compact milling technology. Often, upgrading machinery is more viable than construction. Automated, space-efficient systems reduce the need for manual labor and wide operator walkways. Evaluate your power supply infrastructure carefully. Assess the logistics of routing 3-phase power to compact machinery within constrained utility rooms to avoid electrical bottlenecks.
Building expansions require permits, concrete work, roofing, and extended downtime. In contrast, installing a compact, high-efficiency mill can be completed in a matter of days. When evaluating the power supply, check the amperage rating of your main breaker panel. Compact machines often use high-efficiency motors that draw less starting current, potentially saving you from a costly electrical service upgrade. Route cables through overhead cable trays rather than floor trenches to keep the floor clear of tripping hazards and simplify future layout changes.
Design the initial layout to accommodate future capacity upgrades. You might eventually swap a 1TPH polisher for a 2TPH unit with the same base dimensions. Plan for modular add-ons like optical sorters or secondary polishers. Reserve footprint for these components during the phase-one installation. Utilize expandable conveyor systems that scale vertically rather than horizontally. This ensures your facility can grow without requiring a larger building.
When reserving space for future equipment, mark the floor with high-visibility tape to prevent that area from becoming a permanent storage zone. Install oversized bucket elevators during the initial build. Running a 2TPH elevator at 1TPH capacity causes no issues, but trying to push 2TPH through a 1TPH elevator results in constant jamming. By oversizing the vertical transport system initially, you only need to upgrade the processing machines later, saving significant installation time and avoiding major layout disruptions.
High dust concentration poses a severe risk in small volumes of space. You must implement effective extraction systems. Evaluate compact cyclone dust collectors, bag filter houses, and centralized aspiration networks. These systems maintain air quality without consuming excessive floor space. Address safety compliance regarding explosive dust atmospheres strictly. Follow ATEX or NFPA guidelines for enclosed rooms to prevent catastrophic accidents.
A centralized aspiration network uses a single, high-pressure fan connected to multiple suction points across the milling line. This is far more space-efficient than attaching individual dust collectors to every machine. Route the ductwork along the ceiling or high on the walls to keep it out of the operational zone. Ensure the ducting has smooth interior walls and wide-radius bends to maintain air velocity and prevent dust accumulation inside the pipes. Regularly inspect and empty the cyclone collection bins; an overflowing cyclone pushes dust back into the processing room.
Motors, friction whiteners, and polishers generate significant thermal loads. Confined areas trap this heat, leading to equipment failure. Implement strategic exhaust ventilation to manage ambient temperatures. Use vibration-damping pads and mounts to protect the building structure. Maintain adequate spacing between high-heat components to allow for natural air circulation. Proper thermal management extends the lifespan of your machinery.
Install heavy-duty exhaust fans near the ceiling to draw out the hot air generated by the milling process. Position intake louvers low on the opposite wall to create a cross-breeze that sweeps across the equipment. For vibration control, bolt the machinery to the floor through thick neoprene isolation pads. This prevents the high-frequency vibrations of the destoner and the heavy thumping of the huller from transferring into the concrete slab, which can cause structural cracking and loosen the anchors of adjacent equipment.
Trapped machinery makes routine maintenance impossible without dismantling adjacent equipment. You must establish guidelines for minimum service radii around critical wear parts. Rubber rolls, emery rollers, and screens require frequent attention. Ensure adequate frontal and lateral clearance for installing and replacing screens. Adjusting hulling clearance levers also requires unobstructed physical access. Prioritize maintenance pathways during the initial layout phase.
A rubber roller husker requires at least 24 inches of lateral clearance to slide the heavy rollers off their shafts. If a wall or another machine blocks this space, a 15-minute roller change turns into a multi-hour teardown. Similarly, the emery rollers in the whitener require frontal access for extraction. Document the exact pull-out distances required for every screen, sieve, and roller in your line. Overlay these dimensions onto your floor plan to guarantee that no machine is boxed in.
Conduct a precise site survey measuring length, width, and height, noting structural pillars and utility entry points.
Request 3D layout modeling and exact machine footprints from equipment manufacturers before purchasing.
Prioritize integrated machinery and vertical bucket elevators to maximize your available horizontal floor space.
Establish strict maintenance clearance zones around all critical wear parts to prevent future operational downtime.
A: Micro-scale operations can function in spaces as small as 90 to 150 square feet, provided the ceiling height allows for vertical equipment stacking and bucket elevators.
A: A compact line integrates cleaning, hulling, and polishing onto a single unified frame, drastically reducing the footprint compared to separate, standalone modular machines.
A: Yes, provided the floor can support the weight, you have access to 3-phase industrial power, and you meet local zoning and dust management regulations.
A: A U-shaped layout is optimal for single-door facilities, as it allows both raw material intake and finished product dispatch to occur at the same access point.
A: Utilize compact cyclone dust collectors or centralized aspiration networks that can be mounted externally or suspended to save valuable floor space.
A: Modern combined machines are highly efficient for small capacities, though they may require more frequent, precise maintenance due to their tightly packed components.
A: You must map exact maintenance radii during the 3D design phase, ensuring frontal and lateral access doors on the machinery are never blocked by walls or other equipment.
