Raw, freshly harvested paddy contains up to 10% foreign matter by weight, posing a direct threat to downstream milling efficiency, equipment longevity, and final yield quality. Standard processing lines cannot handle the extreme variance in physical contaminants—ranging from microscopic dust to large stones and heavy straw—without severe mechanical degradation and product contamination. Understanding the exact mechanical and aerodynamic principles a Paddy Cleaner uses to separate these impurities is critical for selecting the right equipment architecture for your facility's specific throughput and harvest conditions. Ignoring this initial processing stage guarantees bottlenecks, excessive maintenance downtime, and compromised final product grades. Facility operators must evaluate their incoming raw material profile to match the correct separation technology to their operational demands.
Aerodynamic vs. Mechanical Separation: Light impurities are removed via aspiration (air flow), while large impurities require mechanical screening or rotary sifting.
Equipment Architecture Dictates Efficiency: A drum pre cleaner excels at heavy, large-debris removal at intake, whereas a vibration grain cleaner provides precision sizing and separation.
Space vs. Complexity Trade-offs: A combined grain cleaner minimizes facility footprint but requires highly precise calibration to prevent good grain loss.
ROI Through Protection: Proper pre-cleaning extends the lifespan of downstream hullers and polishers by mitigating abrasive wear from stones and silica.
Harvested crops bring diverse materials from the field directly into the receiving pit. We classify these contaminants based on their physical dimensions, aerodynamic properties, and density. Light impurities include dust, husk, loose straw, chaff, and empty or unfilled grains. These materials possess a low terminal velocity, meaning they float easily when subjected to upward air currents. Medium impurities consist of weed seeds, broken grains, small stones, and clay balls. These items closely match the physical width and length of actual paddy grains, making them the most difficult to separate. They require precise mechanical screening based on minor dimensional differences. Large impurities involve hay, large stones, mud lumps, twine, and harvest debris. These items exceed the grain size significantly and cause immediate mechanical blockages if allowed to enter elevators or screw conveyors.
Understanding the exact composition of your incoming paddy dictates the screen sizes and aspiration settings required. A facility receiving grain directly from combine harvesters will see a higher percentage of large straw and green weed seeds. Conversely, paddy sourced from intermediate storage facilities might contain higher concentrations of dust and small stones picked up from drying floors. Operators must sample incoming trucks regularly to adjust their cleaning parameters. Failure to adapt to changing impurity profiles results in either excessive good grain loss in the exhaust or dangerous levels of foreign material passing into the hulling department.
Failing to remove these contaminants introduces severe mechanical wear across the entire milling floor. Hard impurities like stones and silica accelerate the degradation of rubber rollers in hullers. A single large stone can gouge a rubber roller, reducing its operational lifespan by up to 30% instantly. These same hard materials destroy the abrasive wheels in polishers, leading to frequent parts replacement and inconsistent whitening. Yield degradation is another direct consequence. Contamination of the final milled rice leads to lower market grading and rejected shipments. Buyers demand strict adherence to purity standards, and visible weed seeds or black stones in the final bag destroy brand reputation.
Operational inefficiency spikes when impurities remain in the flow. Facilities experience increased energy consumption as motors work harder to push dense, contaminated material through the system. Maintenance downtime becomes frequent as operators stop production to clear blocked screens and jammed elevators. The elevated risk of machinery blockages disrupts continuous production schedules, reducing the overall daily throughput. Furthermore, high dust levels from inadequate aspiration create hazardous working conditions, increasing the risk of respiratory issues for staff and elevating the potential for combustible dust incidents.
Effective separation relies on a strict sequential material flow designed to target specific impurities at each stage. The pre-aspiration stage initiates the process. It extracts high-volume, lightweight dust and chaff immediately as raw paddy enters the infeed hopper. Removing this low-density material first prevents screen blinding further down the line, allowing the mechanical sieves to operate at full capacity. Next, the mechanical screening stage applies gravity and kinetic energy across calibrated sieves. This stage separates the material by physical dimensions, dropping smaller particles through the screens while carrying larger debris over the top. Finally, the post-aspiration stage provides a wind-separation polish at the main discharge outlet. This captures any remaining loose hulls or dust generated during the mechanical agitation before the clean grain moves to the hulling phase.
Maintaining an even feed rate across this sequential path is mandatory. Surge loads overwhelm the pre-aspiration chamber, pulling good grain into the dust collection system. Starving the machine results in poor mechanical screening, as the grain bounces erratically across the sieves rather than forming a uniform bed. Operators must utilize automated feed gates and surge hoppers above the cleaner to ensure a consistent, uniform curtain of grain enters the machine at all times.
Aspiration systems utilize terminal velocity principles to separate materials based on their aerodynamic drag. Powerful air blowers and suction channels create a controlled updraft. Materials with low aerodynamic drag, such as dust and chaff, are lifted away from the denser paddy grains. The dust and chaff are carried upward into expansion chambers or cyclone collectors, while the heavier clean grain falls through the air stream. Adjusting the air velocity is a precise operation; too much suction pulls good paddy into the waste stream, while too little leaves dust in the product.
Facilities must evaluate closed-circuit versus open aspiration systems. Closed-circuit systems recirculate the air internally, dropping the heavy dust into a collection auger and reusing the clean air. This improves energy efficiency and reduces the load on external dust filtration systems. Open systems exhaust air externally, requiring robust baghouse filters or high-efficiency cyclones to manage particulate emissions and comply with environmental regulations. The choice depends on the facility's layout, local environmental laws, and the specific moisture content of the incoming paddy, as highly moist dust can clog closed-circuit recirculation channels.
Multi-deck screen configurations separate materials by geometric size. Perforated metal screens dictate what passes and what remains. The top deck performs scalping. It utilizes large perforations to retain large impurities like straw, string, and large stones. The paddy falls through these perforations to the next level. The bottom deck handles sifting. It features smaller perforations that retain the clean paddy while allowing undersized contaminants like sand, broken grains, and small weed seeds to pass through to a waste collection pan.
Multi-outlet discharge separation directs light, medium, and large impurities through dedicated physical discharge spouts. This prevents cross-contamination and streamlines waste management. Operators can direct the clean paddy to the main elevator, route the large straw to a waste bin, and collect the fine sand and weed seeds for separate disposal. Proper screen selection is vital. Processing long-grain varieties requires different perforation shapes and sizes compared to short-grain varieties. Operators must keep a library of interchangeable screens to adapt to different harvest batches.
Cylindrical separation relies on rotating cylinders rather than flat vibrating decks. These systems utilize centrifugal force and gravity to tumble the grain. This action effectively isolates long straw and bulky mud lumps that often cause problems on flat screens. Flat screens struggle with long, stringy materials that tend to dive into the perforations and blind the holes. The tumbling motion of a rotary cylinder prevents these long fibers from aligning with the screen holes, ensuring they travel the full length of the drum and exit as waste.
This tumbling action also breaks apart soft mud lumps, allowing the internal dirt to fall through the screens rather than passing downstream as a solid mass. The rotational speed of the cylinder determines the aggressiveness of the tumbling action. Faster speeds increase centrifugal force, holding the material against the screen longer, while slower speeds allow for more gentle tumbling. Operators adjust this speed based on the moisture content and the specific type of large debris present in the raw paddy.
The mechanism of a vibration grain cleaner uses dual eccentric motors mounted on the sides or top of the screen boat. These motors generate high-frequency, linear vibrations across flat screen decks. Kinetic adjustability is a key feature of this architecture. Operators utilize adjustable balance blocks (counterweights) on the motor shafts and variable motor mounting angles to customize the vibration amplitude, stroke length, and grain travel speed. This level of control makes it best for high-throughput, continuous-flow operations requiring highly accurate sizing and separation of medium-to-fine impurities.
Trade-offs exist with this high-frequency equipment. The machine generates significant structural stress during operation. It requires a robust, vibration-dampened foundation to prevent transferring destructive harmonics to the building structure or adjacent equipment. Regular monitoring of motor synchronization is required; if the dual motors fall out of phase, the linear vibration turns into an erratic wobble, destroying the separation efficiency and potentially damaging the screen boat. Maintenance teams must routinely check motor bearings, suspension springs, and screen tension to maintain optimal performance.
A drum pre cleaner utilizes a rotating cylindrical screen, often installed at the very beginning of the intake line, right after the receiving pit. Rotational variables allow operators to process high-moisture paddy without screen clogging. Adjustable cylinder rotational speeds are crucial here, allowing the operator to match the tumbling action to the stickiness of the incoming crop. This system is best for handling raw paddy directly from the field. It excels with exceptionally high volumes of large impurities like hay, big stones, and harvest trash.
However, this architecture is less effective at removing fine dust and lightweight chaff compared to flat-screen systems. The tumbling action does not provide the precise stratification needed to separate materials of similar size. Therefore, it typically requires pairing with a secondary aspiration or vibration unit further down the line. The primary role of the drum is to protect the initial elevators and conveyors from massive blockages, acting as the heavy-duty first line of defense in the receiving department.

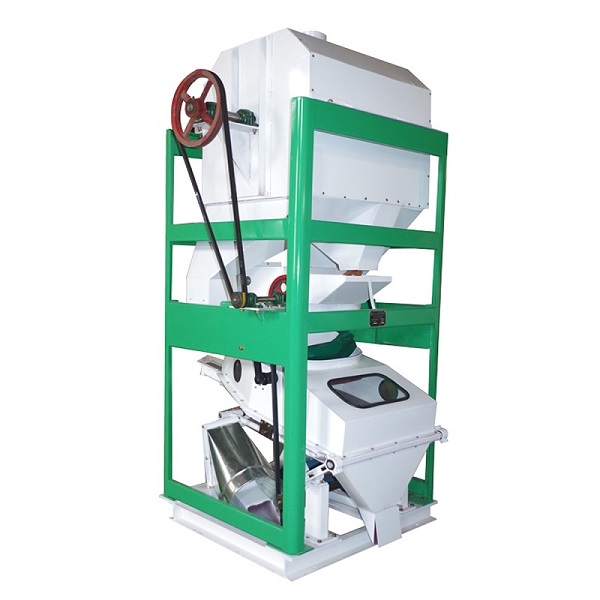

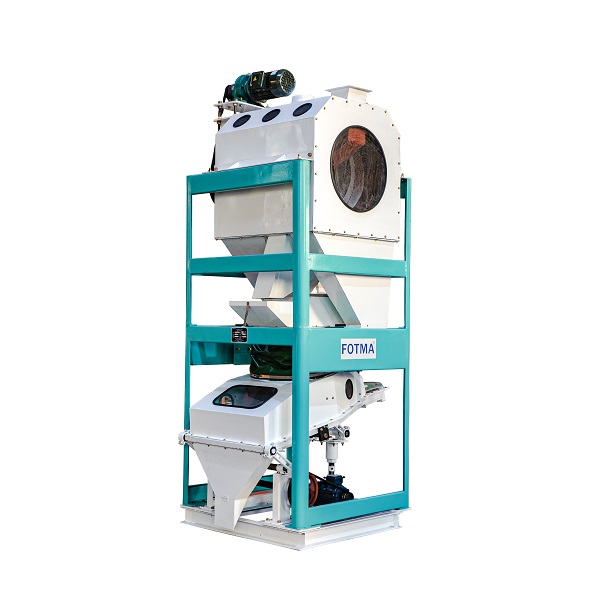

A combined grain cleaner integrates aspiration channels, vibrating screens, and sometimes destoning decks into a single vertical footprint. This architecture is best for small to medium-scale mills where floor space is at a premium and capital budgets restrict the purchase of multiple standalone machines. By stacking the separation stages, facilities achieve comprehensive cleaning within a compact area.
The trade-offs involve higher maintenance complexity and operational rigidity. A failure in one component, such as the main aspiration blower or the eccentric drive, can bottleneck the entire integrated cleaning process, shutting down the mill. Precision calibration is mandatory to maintain efficiency across all integrated stages. Adjusting the airflow for the destoner deck might inadvertently affect the pre-aspiration suction. Operators must understand the interconnected nature of the machine's airflow and mechanical settings to achieve optimal separation without losing good grain.
Calculating the necessary tons-per-hour (TPH) rating is the first step in procurement. You must ensure the cleaner's capacity exceeds the mill's maximum intake rate by at least 20%. This buffer handles surge loads from trucks dumping quickly without choking the equipment. Undersized machines will bottleneck the entire facility, forcing operators to slow down the receiving process. When evaluating manufacturer specifications, verify if the rated capacity is based on wheat or paddy, as paddy's lower bulk density significantly reduces the actual throughput compared to heavier grains.
Consider the future expansion plans of the facility. Installing a cleaner that exactly matches current capacity leaves no room for growth. Upgrading a cleaner later requires significant modifications to spouting, elevators, and dust collection ductwork. Investing in a slightly oversized unit initially provides operational flexibility and reduces wear, as the machine rarely runs at its absolute maximum limit.
Evaluate the availability of interchangeable screens from the manufacturer. Different paddy varieties require specific perforation sizes. Long-grain varieties need oblong holes to prevent the grain from diving through the scalping deck, while short-grain varieties require round holes for accurate sifting. Assess screen material durability. High-carbon steel offers excellent wear resistance against abrasive raw paddy but is susceptible to rust if processing high-moisture crops. Stainless steel screens resist corrosion and provide a smoother surface for grain flow, though they come at a higher initial cost.
Equipment Type | Primary Impurity Target | Ideal Application | Key Maintenance Focus |
|---|---|---|---|
Drum Pre Cleaner | Large stones, heavy straw, mud lumps | Initial intake directly from field trucks | Cylinder rotation speed, internal screen clearing mechanisms |
Vibration Grain Cleaner | Medium to fine impurities, sand, weed seeds | High-throughput continuous flow processing | Motor synchronization, balance block adjustment, spring tension |
Combined Grain Cleaner | Mixed light and heavy impurities | Space-constrained facilities, medium-scale mills | Aspiration calibration, multi-stage airflow alignment |
Variable Frequency Drives (VFDs) on aspiration blowers are essential for modern milling operations. They allow operators to finely tune air volume based on seasonal moisture levels and specific impurity weights. Dry, dusty paddy requires less suction than wet, heavy paddy mixed with damp chaff. VFDs provide this precise control, preventing good grain from being exhausted with the waste. Furthermore, reducing blower speed when full suction is not required significantly lowers electrical consumption, improving the overall energy efficiency of the cleaning department.
Assess the ease of access to the adjustable mechanical components. Throw-angle settings, balance blocks, and screen inclination controls must be accessible without requiring extensive machine disassembly. Operators need to match seasonal shifts in crop moisture and trash levels quickly. If adjusting the vibration amplitude takes two hours and requires specialized tools, operators will likely run the machine at suboptimal settings, compromising cleaning efficiency. Look for machines with external adjustment mechanisms and clear indicator scales for repeatable calibration.
Choke points and uneven feeding between bucket elevators and the cleaner intake lead to poor separation. If the grain enters the cleaner heavily biased to one side of the screen, that side will flood while the other side remains empty, destroying the sifting efficiency. Mitigate this by designing automated feed gates, rotary valves, and surge hoppers above the machine inlet. This ensures a consistent, uniform curtain of grain enters the machine across the full width of the screen deck.
Install a surge hopper with a minimum capacity of 10 minutes of operational throughput above the cleaner.
Utilize a weighted flap gate or a rotary valve to distribute the grain evenly across the inlet width.
Install level sensors in the surge hopper to automatically pause the upstream elevator if the cleaner backs up.
Ensure discharge spouting maintains a minimum 45-degree angle to prevent clean grain or waste from bridging and backing up into the machine.
High volumes of airborne particulate matter create hazardous working conditions, increase explosion risks, and violate local air quality regulations. Relying solely on the cleaner's internal fans is rarely sufficient for a clean working environment. Mandate the integration of closed-loop cyclone dust collectors or centralized baghouse systems. Ensure proper ducting connects with the aspiration system, utilizing smooth-walled pipes with long-radius elbows to maintain air velocity and prevent dust settling in the lines.
Improper settings result in over-cleaning or under-cleaning. Over-cleaning loses good grain with the exhaust, directly impacting profitability. Under-cleaning passes impurities to the huller, destroying rubber rollers. Establish strict, documented baseline settings for different harvest conditions. Conduct mandatory operator training on screen selection, balance block calibration, and airflow adjustment. Operators must know how to read the waste streams; finding whole paddy in the dust cyclone indicates excessive suction, while finding sand in the clean grain discharge indicates blinded sifting screens or insufficient vibration.
Effective impurity removal requires a calculated combination of aerodynamic aspiration for light impurities and mechanical screening for large impurities. Base your equipment selection on your primary intake condition. Specify a drum pre cleaner for heavy field debris. Choose a vibration grain cleaner for precision processing. Opt for a combined grain cleaner for space-constrained efficiency.
Conduct a thorough audit of your current raw paddy impurity profile by sampling incoming trucks over a full harvest season.
Measure your available facility footprint, including vertical clearance, to determine spatial constraints for new equipment.
Request empirical performance guarantees from manufacturers based on testing your specific grain samples in their facilities.
Establish a routine maintenance schedule focusing on screen integrity, motor synchronization, and aspiration duct clearing.
A: A paddy cleaner primarily removes light, medium, and large impurities like straw, dust, and oversized debris using screens and aspiration. A destoner specifically targets heavy impurities like stones and glass that are the exact same size as the grain, using gravity, vibration, and upward airflow to separate materials by density.
A: It relies on an integrated aspiration system located at the feed or discharge points. As the grain spreads across the vibrating screen, a controlled upward air current lifts lighter materials like dust, loose husk, and chaff away from the heavier paddy grains.
A: You should select a drum pre cleaner with at least a 6 to 7.5 tons-per-hour capacity. A 20% to 50% buffer prevents choking during surge loads from incoming trucks and accommodates batches with exceptionally high impurity levels without slowing down the mill.
A: Yes, but it requires careful calibration and monitoring. High moisture can cause screens to blind with wet mud. Operators must adjust the vibration intensity, utilize screen-clearing rubber balls, and increase aspiration airflow to prevent damp chaff from sticking to the grain.
A: Screen lifespan depends on usage volume and material quality. Inspect screens monthly. Replace them when perforations show visible elongation, wear, or cracking, typically every 6 to 12 months in continuous, high-capacity operations.
A: The aspiration system uses terminal velocity to separate materials aerodynamically. It pulls lightweight dust, husk, and chaff out of the grain flow, preventing screen blockages, reducing explosion risks, and improving downstream milling quality.
A: Adjusting the balance blocks changes the amplitude and throw angle of the vibration. This controls how fast the grain travels across the screen and how aggressively it is sifted, optimizing separation efficiency for different moisture levels and impurity types.
