Precise head rice yield directly dictates mill profitability. Whole kernels command premium market prices, while broken grains downgrade entire batches. Even a minor 1-2% drop in grading accuracy translates to massive revenue leakage over a production year. Mill operators constantly face the operational challenge of inconsistent separation. Improper equipment calibration or mismatched screen sizes cause whole grains to bleed into the broken stream. Conversely, broken grains slip through to contaminate premium output.

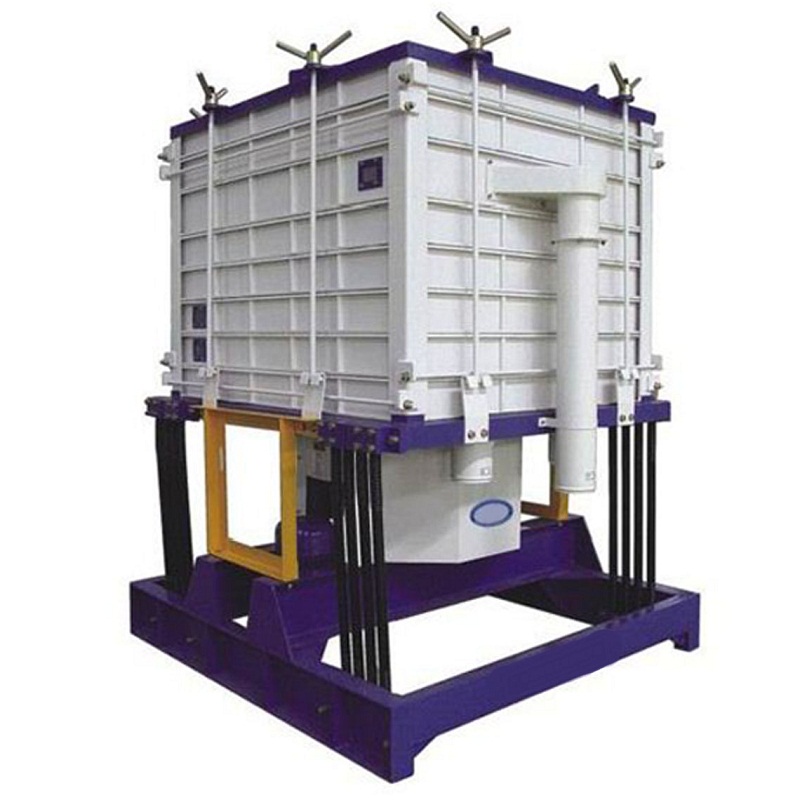

Mechanical screen selection serves as the foundational step in any modern white rice grader. Advanced optical sorting downstream relies entirely on this primary mechanical separation to function efficiently. Modern mills now establish exact grain dimensions before selecting physical screens. They use digital measurement tools, ranging from advanced computer vision to adapted high-resolution photo scanners, to map the digital baseline of the crop. This data drives the mechanical configuration, ensuring maximum yield and strict quality control.
Screen Geometry Dictates Baseline Accuracy: The exact match between screen opening dimensions (thickness/indentation) and specific rice grain morphology is the primary driver of separation efficiency.
Machine Vision Informs Mechanical Calibration: Modern facilities use image processing data—often achieving 90-95%+ accuracy in length and width detection—to determine the optimal screen opening and indent pocket sizes before physical grading begins.
Throughput vs. Precision Trade-off: High-capacity processing requires specific screen configurations to prevent "screen blinding" (clogging) without sacrificing the purity of the sorted rice.
Maintenance is a Yield Factor: Screen wear directly alters aperture sizes over time; regular auditing of screen integrity is non-negotiable for maintaining qualitative grading standards.
Grading success depends entirely on matching screen geometry to specific grain morphology. You must separate grains based on exact thickness, width, and length parameters. Different rice varieties demand distinct screen aperture shapes. Long-grain basmati requires different handling than short-grain japonica. Slotted screens target thickness, while round holes typically address width. Indented pockets isolate length.
The physics of grain flow over a screen surface determines separation efficiency. Grains must stratify properly as they move across the sieve. Agitation speed interacts directly with screen hole size. If the eccentric drive spins at 300 RPM with a 20mm stroke, the grains stratify perfectly. If you push the machine to 400 RPM, grains bounce over the apertures without falling through. If agitation drops below optimal levels, the material clumps, reducing the effective screening area. Proper stratification ensures smaller, broken grains migrate to the bottom of the material bed. They then align with the screen openings and drop through. You must calibrate the stroke and frequency of the sieve box to match the specific flow characteristics of the rice variety you are processing.
Screen geometry also involves the relief angle of the punched holes. A straight-cut hole often traps grains, leading to immediate blockages. A tapered hole allows grains that enter the aperture to pass completely through. This prevents blinding and maintains the open area of the screen. Matching the exact millimeter dimension of the screen opening to the target grain profile is the only way to achieve high-purity separation.
Rice Variety | Primary Morphological Trait | Optimal Screen Geometry | Separation Goal |
|---|---|---|---|
Long-Grain Basmati | High length-to-width ratio | Elongated slotted screens | Remove thin, immature kernels without breaking long grains |
Short-Grain Japonica | Round, plump profile | Round punched holes | Isolate oversized anomalies and maintain uniform width |
Medium-Grain Calrose | Moderate length and thickness | Hybrid slotted/round decks | Balance thickness grading with initial length sorting |
Thickness grading and length grading serve entirely different operational goals. A thickness grader removes immature, thin, or malformed kernels from the main flow. It uses precise slotted screens. The slots allow thin grains to pass while retaining mature, plump kernels. This step improves the overall cooking quality and appearance of the final product. Operators typically deploy thickness graders early in the milling flow to stabilize the material bed for downstream equipment.
A dedicated rice length grader separates broken grains from whole head rice. This machine relies on indented cylinders rather than flat slotted screens. The internal surface of the cylinder features thousands of precision-machined pockets. As the cylinder rotates, broken grains fit into the pockets and are lifted out of the main grain mass. Whole grains are too long to sit securely in the pockets. They tumble back down and exit the machine as premium head rice.
The concept of the "Broken Rice Grader" represents a specialized application of this length grading technology. It utilizes advanced screening configurations to ensure the complete separation of whole rice. The primary goal is to prevent any head rice from escaping into the broken stream. Losing whole grains to the broken bin directly destroys profit margins. Operators must select cylinder segments with pocket sizes that precisely match the threshold of what the market defines as a "broken" grain for that specific batch.
Sample the incoming milled rice to determine the exact length distribution of broken versus whole grains.
Select an indented cylinder segment where the pocket diameter is slightly larger than the longest acceptable broken grain.
Install the cylinder and adjust the internal catching trough angle to intercept the lifted brokens before they fall back into the main flow.
Run a test batch and inspect the broken discharge stream for any whole grains.
Fine-tune the cylinder RPM; faster rotation lifts grains higher, while slower rotation allows marginal grains to fall back earlier.
A modern rice grading machine typically employs two primary mechanical approaches: rotary sieves and indented cylinders. Each handles a specific phase of the separation process. Flat or rotary sieves excel at scalping and initial sizing. They remove large impurities, bran clumps, and severely undersized brokens. Rotary sieves require screens with high open-area percentages to handle massive bulk flow. The screen requirements here focus on durability and preventing major blockages.
Rotary sieves handle high-tonnage bulk flow without bottlenecking the mill.
They utilize multi-deck configurations to extract different sizes of brokens simultaneously.
Flat screens are easier to inspect and clean during routine maintenance shifts.
They provide the necessary material stabilization before grains enter the sensitive indented cylinders.
Indented cylinders handle the precise length separation. The use case here is surgical accuracy rather than bulk scalping. The selection of the pocket size determines the exact threshold for a broken grain. If the pocket is half a millimeter too large, small whole grains will be lifted and discarded with the brokens. If the pocket is too small, large brokens will remain in the head rice flow. You must evaluate the cylinder configuration based on the specific length distribution of the incoming milled rice. Many mills use modular cylinder segments, allowing operators to swap pocket sizes as they change rice varieties.
The combination of these two mechanisms ensures high purity. The rotary sieve prepares the material bed, ensuring only clean, properly sized grains reach the indented cylinders. This prevents the delicate pockets from clogging with dust or oversized anomalies. Proper configuration of both stages maximizes the yield of premium whole kernels.
Traditional mechanical screening now integrates heavily with modern machine vision systems. Qualitative classification software provides the data necessary to optimize physical screens. Computer vision and morphological image processing audit grain batches in real-time. Some mills even utilize cost-effective innovations like adapted consumer-grade photo scanners to capture high-resolution profiles of the rice.
These digital systems achieve remarkable precision. They routinely hit 95% detection rates and maintain 90%+ accuracy for length and width measurements. This data eliminates guesswork. Instead of relying on visual estimates, operators receive the exact morphological data needed to select mechanical screen openings and indent pocket sizes. If the software detects an average grain length of 6.2mm, the operator knows exactly which cylinder pocket size to install.
Metaheuristic classification approaches within the software analyze this real-time data. The system recommends the most profitable screen configuration for a specific run. It calculates the optimal balance between throughput and purity based on current market prices for head rice versus brokens. This hybrid approach ensures the mechanical grader operates at peak financial efficiency.
Optical sorting does not replace mechanical screens. It relies on them. Mechanical screens handle the bulk separation of broken rice and size anomalies. They do the heavy lifting. The optical sorter then removes discolored grains, chalky kernels, and foreign materials. If you send poorly mechanically graded rice to an optical sorter, the cameras and ejectors cannot keep up. The optical sorter will reject good grains alongside the bad, destroying your yield. Perfect mechanical screen selection is the prerequisite for effective optical sorting.
Operating a rice grader and sorter involves a constant trade-off between maximum capacity and separation accuracy. Pushing too much tonnage across a screen forces grains to ride on top of each other. They never touch the screen surface, meaning undersized grains bypass the apertures entirely. This destroys separation accuracy and sends brokens straight into the finished product bin.
Screen open-area percentage heavily influences throughput. A screen with more holes processes material faster. However, maximizing the open area reduces the amount of solid metal between the holes. This compromises the structural integrity of the screen. Under heavy loads, a fragile screen will flex or tear. Furthermore, placing holes too close together can cause grains to bridge across the gaps, leading to rapid clogging. You must select a screen that balances sufficient open area for your target throughput with the structural rigidity needed to maintain flat, consistent stratification.
Screen materials dictate the lifespan and long-term accuracy of the equipment. High-carbon steel offers excellent durability and resists the abrasive nature of milled rice. Stainless steel provides superior corrosion resistance, which is vital in humid milling environments. Polyurethane screens offer flexibility and natural self-cleaning properties, though they may lack the sharp sizing edges of punched metal.
Screen Material | Wear Resistance | Corrosion Resistance | Best Application Scenario |
|---|---|---|---|
High-Carbon Steel | Excellent | Low | High-tonnage dry milling environments requiring sharp aperture edges. |
Stainless Steel (304/316) | Good | Excellent | Humid climates or facilities processing parboiled rice with higher moisture. |
Polyurethane | Outstanding | Excellent | Scalping decks where blinding is a severe issue and sharp sizing is secondary. |
Abrasive rice dust and continuous friction wear down screen apertures over time. This leads to "accuracy drift." A 1.5mm slot might wear down to 1.7mm after several months of continuous operation. This slight widening shifts the grading threshold, allowing larger grains to fall into the reject stream. You must evaluate screen materials based on expected operational hours and your maintenance budget. Hardened steel screens cost more upfront but maintain their precise aperture dimensions significantly longer, protecting your head rice yield.
Switching screens for different rice varieties is a daily operational reality in versatile mills. You cannot run long-grain and short-grain varieties on the same screen configuration without suffering massive yield losses. Changeover efficiency directly impacts daily production capacity.
Modern graders feature quick-release screen mechanisms and modular designs. Operators can slide sieve frames out and replace them in minutes without specialized tools. Indented cylinders should feature segmented shells that unbolt easily. Minimizing downtime during batch changeovers keeps the mill profitable. When evaluating equipment, time the screen replacement process. If it takes two mechanics an hour to swap a screen deck, that machine will cause unacceptable bottlenecks in a multi-variety milling operation.
Screen blinding is the primary risk in mechanical grading. Grains become wedged in the screen apertures. This drastically reduces the available grading area. As holes plug up, good grains flow over the top and end up in the wrong discharge chute. Accuracy plummets immediately, and the machine requires a hard shutdown for manual cleaning.
Mitigation requires specific, proactive strategies. Select screens with optimal relief angles so grains pass through cleanly. Utilize integrated screen cleaners. Rubber balls bouncing beneath the screen deck dislodge trapped grains. Mechanical brushes sweep the surface continuously. Some advanced systems use ultrasonic vibration to keep the screen clear. Controlling feed rates is also critical. Surging the machine with a massive dump of rice guarantees blinding. Maintain a steady, even flow across the entire width of the sieve to keep the apertures clear and functional.
Install high-rebound rubber cleaning balls beneath all flat sieve decks.
Inspect and replace cleaning balls every three months, as they lose elasticity over time.
Adjust the feed gate to ensure a uniform material bed depth of no more than 15mm across the screen.
Verify that the aspiration system is pulling sufficient negative pressure to remove lightweight dust before it settles into the apertures.
High moisture content in milled rice alters its flow characteristics. Damp grains become sticky. They clump together and adhere to the screen surface. This exacerbates screen clogging and prevents accurate stratification. The grains simply will not flow smoothly into the indented pockets or through the slotted sieves. Bran dust combined with high humidity creates a paste that fills cylinder pockets entirely.
You must implement strict environmental controls. Conduct pre-grading moisture assessments on every batch. If the rice exceeds 14% moisture, it must be conditioned or dried before it hits the mechanical grader. Control the ambient humidity in the grading hall. Ensure dust extraction systems are functioning perfectly, as damp dust creates a concrete-like paste that completely ruins screen performance. Screens only perform to their specified accuracy when handling properly conditioned, free-flowing rice.
A white rice grader is only as accurate as its screen configuration. Precise alignment between screen geometry and exact grain morphology forms the non-negotiable foundation of milling profitability. If the screens are mismatched or worn, you will lose premium head rice to the broken stream, directly impacting your bottom line. Mechanical separation remains the heavy lifter in the mill, setting the stage for downstream optical sorting.
Prioritize equipment that offers highly durable screen materials to prevent accuracy drift. Demand rapid changeover capabilities to handle multiple rice varieties without excessive downtime. Ensure the mechanical grader is fully compatible with machine-vision calibration data to eliminate guesswork from your setup process.
Conduct a morphological audit of your most common rice varieties using digital scanners or image processing software to document exact length and width profiles.
Request physical grading trials from equipment manufacturers using your specific rice samples before making any procurement decisions.
Establish a strict maintenance schedule to measure screen aperture wear with digital calipers every 30 days.
Standardize your feed rate protocols to prevent sieve overloading and screen blinding during peak production hours.
A: Screen aperture dimensions set the exact physical threshold for separation. Even a 0.5mm deviation in hole size can cause whole grains to fall into the broken stream or allow brokens to contaminate the head rice. Precise matching to grain morphology ensures high-purity sorting.
A: Thickness graders use flat, slotted screens to remove thin or immature grains from the flow. Length graders utilize rotating indented cylinders with precise pockets to lift and separate broken grains from whole head rice based strictly on grain length.
A: Computer vision and high-resolution scanners provide real-time, highly accurate measurements of grain length and width. Operators use this digital baseline data to select the perfect physical screen opening and indent pocket sizes, eliminating visual guesswork.
A: Replacement schedules depend on tonnage processed and material hardness. Abrasive rice dust widens apertures over time. Operators must perform regular caliper checks on screen holes. Replace screens immediately when aperture wear shifts the grading threshold and causes yield loss.
A: No. Optical sorters remove color defects and foreign materials. Mechanical screens are strictly required for efficient, high-volume size and shape separation. Optical sorters rely on mechanical graders to handle the bulk separation of broken rice first.
A: Prevent clogging by maintaining strict feed rate control and ensuring optimal grain moisture levels. Utilize active screen cleaning mechanisms integrated into the machine, such as bouncing rubber balls, mechanical brushes, or ultrasonic vibration systems to dislodge wedged grains.
