In commercial rice milling, profitability is strictly governed by Head Rice Recovery (HRR). Every percentage point increase in broken grains represents a direct loss in market value and operational margin. Many facilities struggle with inconsistent HRR due to misaligned workflow stages, outdated friction technology, poor moisture management, or a failure to balance the Degree of Milling (DOM) with grain integrity. Achieving a consistent 60-70% HRR requires treating the facility not as a series of isolated machines, but as an integrated, data-driven workflow. This guide breaks down the technical evaluation of a modern Rice Processing Plant, focusing on equipment selection, workflow optimization, and risk mitigation to maximize whole-grain yield.
HRR is a System-Wide Metric: High head rice recovery relies on precise calibration across the entire workflow, from paddy cleaning to final polishing; a bottleneck in one stage degrades the output of the whole line.
Pre-Treatment Hardens Yields: Integrating a parboiling process can fundamentally alter grain structure, healing micro-fissures and drastically improving HRR potential before milling even begins.
Friction vs. Abrasion Dynamics: Selecting the right whitening and polishing equipment based on specific grain varieties is critical to minimizing thermal and mechanical stress on the kernel.
Automation Drives Consistency: Transitioning to an automatic rice milling plant reduces operator-induced calibration drift, ensuring consistent pressure and feed rates.
Paddy Quality Dictates Potential: Machinery can only preserve existing grain integrity; rigorous pre-cleaning and moisture control (ideal 14% moisture content) are non-negotiable prerequisites for high HRR.
Head Rice Recovery defines the financial viability of any milling operation. You calculate this metric by dividing the weight of whole milled grains by the total weight of the rough rice intake. Industry benchmarks vary strictly by grain morphology. Long-grain varieties typically target a 55% to 60% HRR. Medium and short-grain varieties, being inherently more robust, should consistently yield between 60% and 65%. Falling below these benchmarks signals mechanical inefficiencies or poor intake quality.
Before upgrading your facility, you must establish a theoretical maximum yield. Production baselines often fall short of laboratory-scale milling tests. Use a laboratory husker and a standardized friction mill to process a controlled sample of your specific paddy supply. This lab test reveals the absolute maximum HRR the grain can yield before large-scale mechanical stress applies. You use this baseline data to hold equipment vendors accountable when negotiating performance guarantees for new machinery.
To conduct an accurate baseline test, operators should follow a strict sampling protocol:
Extract a 1-kilogram sample of raw paddy directly from the intake elevator before any pre-cleaning occurs.
Run the sample through a laboratory-scale aspirator to remove light impurities and establish the clean paddy weight.
Process the clean paddy through a benchtop rubber roll husker, carefully collecting all brown rice and unhusked paddy.
Pass the brown rice through a laboratory friction whitener set to the exact target whiteness index of your commercial production.
Sift the final milled sample using a standard grading screen to separate the head rice from the broken grains, then weigh the head rice to calculate the maximum theoretical HRR.
The financial impact of broken grains is severe. Premium head rice commands top market prices. Broken rice, often downgraded to brewers' rice or sold for flour processing, sells at a steep discount. A mere 1% to 2% drop in HRR across a high-capacity facility translates to massive annual revenue losses. Facility managers must calculate this per-ton revenue loss to justify equipment upgrades.
Upgrading equipment requires balancing capital expenditure with operational efficiency. You must evaluate the projected revenue increase from higher HRR against the per-ton power consumption of the new machinery. High-yield equipment often utilizes multi-pass systems that consume more electricity. The financial model must prove that the value of the recovered head rice exceeds the additional utility and capital costs.
Grain Type | Target HRR Benchmark | Common Breakage Risks | Market Value Impact |
|---|---|---|---|
Long Grain (e.g., Basmati, Jasmine) | 55% - 60% | High susceptibility to thermal cracking and mechanical snapping. | Highest premium loss per broken grain. |
Medium Grain (e.g., Calrose) | 60% - 65% | Friction damage during aggressive whitening passes. | Moderate revenue drop; often blended if slightly broken. |
Short Grain (e.g., Arborio, Sushi) | 62% - 68% | Over-milling leading to chalky dust generation. | Lower breakage risk, but strict visual quality standards. |
The objective of pre-cleaning is the aggressive removal of impurities. Straw, stones, mud balls, and metallic dust cause uneven feed rates. They also inflict severe damage on downstream equipment. A clean intake stream is the foundation of high HRR.
Evaluate vibratory cleaners against rotary drum cleaners. Vibratory systems offer high throughput for heavy impurities. Rotary systems excel at removing large, fibrous materials like straw. Look for dual-aspiration systems. These use controlled airflows to lift light impurities and empty grains without carrying away viable paddy. Operators must calibrate the aspiration channel daily to match the specific density of the incoming paddy batch.
Foreign materials cause immediate micro-fractures in grains during the husking stage. A stone passing through a rubber roll husker will gouge the rollers and crush surrounding grains. Effective de-stoning prevents this catastrophic mechanical damage and extends the lifespan of your husker rolls. The destoner deck angle and air velocity must be adjusted based on the size and weight of the stones prevalent in your region's harvest.
Impurity Type | Removal Equipment | Operational Parameter |
|---|---|---|
Large Straw & Stalks | Rotary Drum Scalper | Screen perforation size (typically 12mm - 15mm). |
Dust & Empty Grains | Aspiration Channel | Air velocity adjustment via variable frequency drive fan. |
Stones & Mud Balls | Gravity Destoner | Deck inclination angle and fluidization airflow. |
Ferrous Metals | Magnetic Separator | Gauss strength (minimum 3000 Gauss recommended). |
Parboiling fundamentally alters the physical structure of the rice kernel. The objective is to gelatinize the starch within the grain through a strict cycle of soaking, steaming, and drying. This hardens the grain prior to milling.
Assess the thermal efficiency of continuous versus batch parboiling systems. Continuous systems offer better temperature stability for large operations. The soaking phase requires water temperatures between 60°C and 70°C to fully hydrate the starch matrix without causing premature expansion. Steaming must be applied under precise pressure to drive the gelatinization process to the core of the kernel.
Evaluate the precision of the drying stage. The system must return the paddy to a stable 14% moisture content. Rapid drying induces thermal shock, which creates internal fissures and defeats the purpose of parboiling. Operators utilize multi-stage drying, alternating between hot air exposure and tempering bins, to allow internal moisture to migrate to the surface slowly.
Parboiling heals existing micro-fissures in the rough rice. It significantly increases the grain's resistance to mechanical stress. Facilities integrating this step often see HRR boost by 5% to 10% compared to raw milling. It is a highly effective strategy for processing older or structurally weak paddy.
The objective here is removing the abrasive silica husk with minimal pressure. Applying excessive force at this stage guarantees kernel breakage later in the workflow. The husking process relies on the shearing action created by two rubber rolls spinning at different speeds.
Modern facilities choose between pneumatic rubber roll huskers and traditional mechanical huskers. Pneumatic huskers utilize compressed air to maintain constant, uniform pressure between the rubber rolls. Mechanical huskers rely on manual weights or springs, which fluctuate as the rolls wear down. The peripheral speed difference between the fast and slow roll is typically set around 24% to optimize the shearing force without crushing the grain.
Evaluate the automated pressure control of pneumatic systems. Consistent pressure prevents grain crushing. Next, assess the efficiency of the paddy separator. Tray separators and screen separators must accurately divide brown rice from unhusked paddy. The system must return unhusked paddy to the husker without recirculating already husked brown rice.
Incorrect roll clearance is the leading cause of early-stage grain fracture. Furthermore, recirculating brown rice through the husker strips the bran prematurely and shatters the kernel. A highly efficient separator within a complete rice processing line prevents this recirculation loop. Operators must monitor the shore hardness of the rubber rolls, replacing them when they drop below the manufacturer's specified durometer rating.
Whitening removes the bran layers to achieve the target Degree of Milling (DOM) and whiteness index. The primary challenge is maintaining kernel integrity while applying intense friction and abrasion. The bran layer contains high levels of oil, which heats up rapidly under friction.
Abrasive whiteners utilize emery rolls to cut away the outer bran layers. Friction whiteners use iron rolls to rub the grains against each other and the screen, removing the inner bran and polishing the surface. A robust aspiration system must pull air through the hollow shaft of the whitener to cool the grain and extract the loose bran.
Evaluate multi-pass whitening systems versus single-pass configurations. Single-pass machines apply massive pressure and generate extreme heat, resulting in high breakage. Multi-pass systems distribute the mechanical stress and thermal load across three or four distinct machines. This phased approach significantly reduces breakage in a commercial rice mill line.
A standard multi-pass configuration follows a specific sequence:
First Pass (Abrasive): Uses a coarse emery roll (e.g., 30-40 grit) to strip the tough outer pericarp with minimal pressure.
Second Pass (Abrasive): Uses a finer emery roll (e.g., 60 grit) to remove the aleurone layer while keeping the grain temperature low.
Third Pass (Friction): Uses an iron roll to gently rub the remaining bran dust off the kernel, smoothing the surface.
Final Polish (Water Mist): Injects a highly atomized water mist into the polishing chamber to create a glossy finish and extend shelf life.
Heat generation during whitening causes grain expansion and cracking. Over-milling to achieve excessive whiteness directly destroys HRR. Final water mist polishing must be precisely calibrated. Applying too much water causes rapid surface expansion and thermal shock, instantly fracturing the head rice.
The final objective is separating head rice from broken grains and removing discolored or defective kernels. This ensures the final product meets strict market specifications.
Planter sifters use oscillating screens to separate grains by width. Length graders utilize indented cylinders to lift shorter broken grains out of the head rice stream. The angle of the catch trough inside the indented cylinder dictates the exact separation point between head rice and large brokens. Operators must adjust this trough angle based on the specific length profile of the milled batch.
Optical and RGB color sorters use high-speed cameras and air ejectors to remove chalky, peck, or yellow grains. Evaluate sensor resolution. Modern sorters require 5400-pixel cameras to detect micro-defects. Assess ejector precision. High-frequency ejectors minimize the accidental rejection of good head rice. The software must be adaptable, allowing operators to quickly switch defect profiles based on the specific batch of paddy being processed.
Programmable Logic Controllers (PLCs) and continuous flow sensors are the backbone of modern yield optimization. These systems prevent machine starvation or overloading. Maintaining consistent feed rates is an absolute requirement for optimal HRR. Surges in grain flow choke whiteners, while starvation causes grains to bounce and shatter against the screens.
Evaluate vendors based on their SCADA (Supervisory Control and Data Acquisition) capabilities. A robust SCADA system aggregates data from every motor, sensor, and pneumatic valve. Look for inline HRR monitoring tools that provide real-time yield data. Capacitive sensors in the surge bins communicate directly with the PLC to modulate the feed gates via PID loops, ensuring a perfectly steady flow of grain into the whiteners.
Remote diagnostic support is also necessary. When transitioning to an automatic rice milling plant, vendor engineers should be able to troubleshoot PLC faults remotely to minimize downtime.
High-capacity motors process more tons per day (TPD). However, they can increase the percentage of broken grains if not paired with variable frequency drives (VFDs). VFDs allow operators to adjust the RPM of huskers and whiteners based on the specific grain variety and moisture content.
Measure the kilowatt-hour (kWh) per ton of processed rice against the guaranteed HRR percentage. A machine that uses 10% less power but drops HRR by 2% is a net financial loss. Energy efficiency must never come at the expense of grain integrity. Facility engineers must track the amperage draw of the whitener motors; a sudden spike in amps indicates screen blinding or excessive internal pressure, both of which destroy head rice.

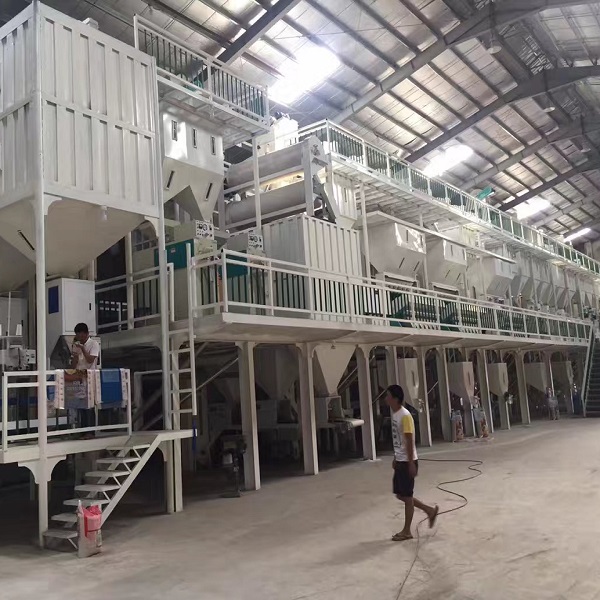

Sizing the plant correctly based on intake volume dictates workflow stability. A 20 to 50 TPD line requires different workflow buffering, bin sizing, and automation levels than a 100+ TPD industrial facility.
Ensure elevators and conveyors are sized correctly. Bucket elevators must run at optimal belt speeds (typically under 1.5 meters per second) to prevent grain-on-grain crushing during discharge. Drag conveyors should be used for horizontal transport to minimize friction. In higher-capacity setups, undersized transport mechanisms cause bottlenecking and back-pressure, which physically crushes the milled rice before it reaches the packaging bins.
Processing paddy outside the 13.5% to 14.5% moisture range guarantees low HRR. If the paddy is too dry (below 12%), the starch matrix becomes brittle and shatters under the slightest pressure. If the paddy is too wet (above 15%), the bran becomes gummy. This clogs the whitener screens, increases internal machine friction, and overheats the grain.
Integrate continuous inline moisture meters before the husking stage. Establish strict intake drying protocols. If a batch arrives out of spec, route it to holding bins for aeration or mechanical drying before it enters the main milling line. Operators must understand the drying curve of their specific grain variety to prevent case hardening during the drying phase.
Manual adjustments to rubber roll clearance or whitener brake weights often result in inconsistent pressure. Operators may over-tighten a whitener to achieve a brighter color, inadvertently spiking broken grain rates. As mechanical parts heat up and expand during a shift, manual settings drift away from their optimal calibration.
Invest in automated, pneumatically controlled machinery. These systems auto-adjust to maintain constant pressure regardless of wear or temperature. Mandate rigorous, vendor-led operator training programs. Operators must understand the physics of milling, not just which buttons to push. They need to know how to read the amp meters and adjust the feed gates accordingly.
Worn emery rolls lose their abrasive cutting edges. Degraded rubber husker rolls apply uneven pressure. Blocked screens trap bran inside the milling chamber. All these maintenance failures increase friction, elevate grain temperature, and cause severe grain damage.
Evaluate equipment vendors based on the domestic availability of consumable wear parts. Assess the physical design of the machinery for maintenance access. Operators must be able to execute screen and roll replacements quickly. If a screen takes four hours to change, maintenance will be deferred, and HRR will suffer.
Maintenance Task | Frequency | Impact on HRR if Ignored |
|---|---|---|
Clean Whitener Screens | Daily | Bran buildup causes extreme friction, overheating, and grain fracture. |
Check Rubber Roll Wear | Daily | Uneven wear causes poor husking efficiency and crushes the grain. |
Inspect Destoner Deck | Weekly | Clogged mesh allows stones to pass, destroying husker rolls and grain. |
Calibrate Color Sorter Cameras | Weekly | Poor ejection accuracy rejects good head rice into the waste stream. |
Replace Emery Rolls | Bi-Annually (varies by volume) | Dull grit forces operators to increase pressure, crushing the rice. |
Conduct a baseline audit of your current facility to identify exact broken grain percentages at each individual workflow stage.
Install inline moisture meters at the intake point to enforce a strict 13.5% to 14.5% processing threshold.
Consult with a milling engineering firm to model the ROI of retrofitting a multi-pass whitening system into your existing line.
Implement a mandatory daily inspection protocol for rubber husker rolls and whitener screens to prevent friction-induced breakage.
A: A highly efficient commercial line should achieve an HRR between 60% and 65% for medium and short-grain varieties. Long-grain varieties typically yield between 55% and 60%. Falling below these benchmarks usually indicates mechanical stress, poor moisture management, or outdated single-pass whitening equipment.
A: In a laboratory, HRR is measured using a controlled sample processed through a lab-scale husker and friction mill. This establishes the theoretical maximum yield of the paddy. In live production, HRR is calculated by dividing the total weight of whole milled grains outputted by the total weight of rough rice fed into the system.
A: Moisture content dictates grain strength. The ideal range is 13.5% to 14.5%. Paddy below 12% is brittle and shatters during husking. Paddy above 15% creates gummy bran that clogs whitener screens, causing friction spikes, overheating, and severe kernel breakage.
A: Parboiling involves soaking, steaming, and drying the rough rice before milling. This process gelatinizes the starch inside the kernel, effectively gluing together any existing micro-fissures. This hardens the grain, making it highly resistant to mechanical stress and often boosting HRR by 5% to 10%.
A: Abrasive whitening uses rough emery rolls to cut and scrape away the outer bran layers with minimal pressure. Friction whitening uses smooth iron rolls to rub the grains against each other under higher pressure to remove the inner bran and polish the surface. Both are typically used in sequence.
A: The Degree of Milling refers to the amount of bran removed to achieve a specific whiteness. A higher DOM requires more aggressive friction and multiple passes. Pushing for excessive whiteness increases thermal load and mechanical stress, directly causing grain expansion, cracking, and a significant drop in HRR.
